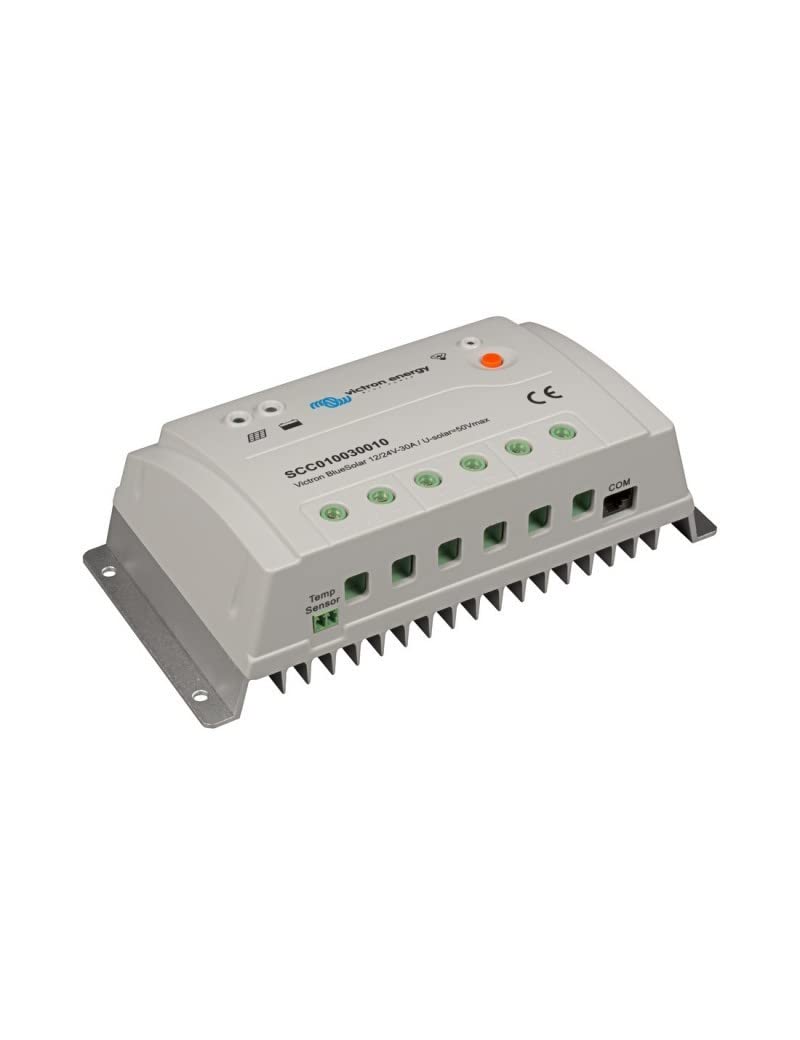

Victron Energy BlueSolar PWM-Pro 30A 12/24V
Maximize solar power and protect your batteries with the Victron BlueSolar PWM-Pro 30A charge controller. This 12/24V controller handles up to 30A of solar input and uses a three-stage charging algorithm (Bulk, Absorption, Float) to extend battery life. It includes low voltage disconnect for load protection, temperature compensation input, and is perfect for off-grid solar systems, RVs, and boats. Priced at $60.15 (compare at $129) – a fantastic deal for a reliable solar controller.
Key Specifications
- Brand: Victron Energy
- Model: BlueSolar PWM-Pro 30A
- Product Type: Solar Charge Controller (PWM)
- Rated Current: 30A
- System Voltage: 12V or 24V (automatic recognition)
- Max Solar Input Voltage: 50V (12V system) / 100V (24V system)
- Charging Algorithm: Three-stage (Bulk, Absorption, Float)
- Load Output: Yes, with low voltage disconnect
- Temperature Compensation: Yes (sensor input)
- Protection: Reverse polarity, over-temperature, over-current
Lithium Battery Compatibility
Yes, the BlueSolar PWM-Pro supports lithium batteries! You can select a lithium setting in the battery type options (including LiFePO4). The controller's voltage setpoints can be adjusted if needed. Please refer to the manual for specific settings.
Temperature Sensor Connection
The controller has a dedicated temperature sensor input (not included). Connect a Victron temperature sensor (e.g., ASS000100000) to automatically adjust charge voltages based on battery temperature. This is especially important for lead-acid batteries.
Use Cases & Comparison
Ideal for small to medium solar installations: RVs, boats, cabins, and van conversions. If you need higher current, consider the BlueSolar PWM-Pro 50A. For MPPT technology, the SmartSolar series offers more efficiency but at a higher price. The PWM-Pro is a cost-effective choice for smaller panels.
Deal Value
At $60.15, you save $68.85 (53% off) from the original $129. Use coupon SAVE15 for an additional 15% off. Free shipping on orders over $45 – this item qualifies.
